Twin Cylinder Setup Example for Technical Divers
A twinset should feel predictable before it ever reaches the water. When you are carrying two cylinders, the details that seem minor on land - band position, hose routing, valve access and trim weight - quickly become the difference between a relaxed descent and a dive spent fighting your equipment. This twin cylinder setup example outlines a practical starting configuration for divers moving into backplate-and-wing diving, technical training or more demanding recreational profiles.
The aim is not to copy somebody else's rig bolt for bolt. Cylinder diameter, exposure protection, body shape, planned gas volume and instructor requirements all affect the final result. Think of the layout below as a proven baseline that can be adjusted around the diver and the type of diving being planned.
The twin cylinder setup example: a sensible baseline

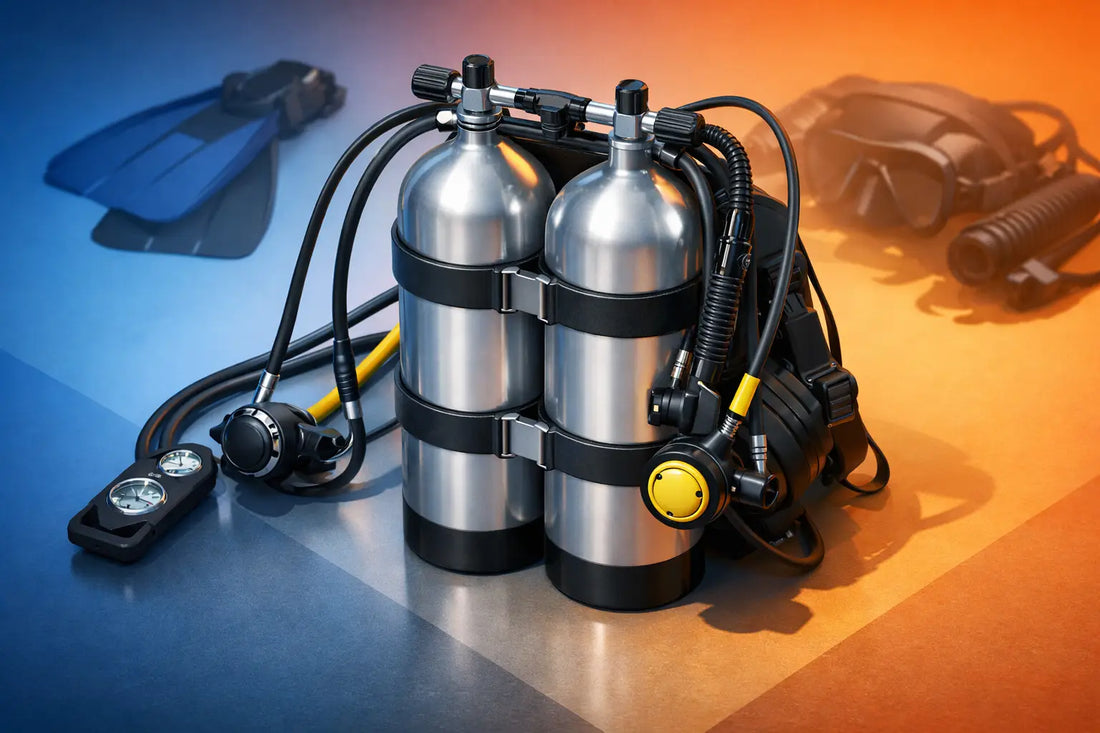

For many divers, a common starting point is a pair of matched 12-litre steel cylinders, joined with a centre isolator manifold and carried on a stainless-steel backplate with a wing sized for the amount of lift required. This is a practical choice for temperate-water diving because steel cylinders provide useful ballast and offer enough gas for longer dives when appropriately planned.
Matched cylinders matter. They should be the same model, capacity, working pressure and ideally be at similar stages of service life. Mixing a 12-litre cylinder with a 10-litre cylinder, or pairing steel and aluminium, makes gas management and trim more complicated than they need to be. A balanced set also sits more consistently against the backplate.
A centre isolator manifold lets the diver access gas from both cylinders while retaining the ability to isolate a failed side. This is the standard arrangement for many twinset training programmes. It only provides its intended redundancy if you can reach and operate all three valve knobs, so valve-drill practice and careful cylinder positioning are essential.
The wing should be selected for the rig, not simply chosen because more lift sounds safer. A wing with excessive lift can be harder to control, may trap air around the cylinders and can encourage poor trim. A streamlined twinset wing with enough buoyancy to support your cylinders, regulators, backplate, exposure suit and any planned accessories is usually the better choice.
Backplate, harness and bands
A one-piece webbing harness on a backplate is simple, durable and highly adjustable. Stainless steel is popular with steel twinsets because it contributes useful fixed weight. An aluminium backplate may be preferable for travelling or where the diver needs less ballast, but it will usually require more lead elsewhere.
Set the twinset at the right height before fine-tuning anything else. As a starting point, the valve knobs should sit where you can comfortably reach them without forcing your shoulders. If the cylinders are too low, accessing the valves becomes difficult. If they are too high, the valves may press into the back of your head or restrict your hood.
Cylinder bands secure the manifolded cylinders to the backplate. Their position affects both stability and valve reach. Tighten them evenly, confirm the bolts are correctly seated in the plate or rails, and check that the cylinders cannot shift. This is not a component to improvise with or leave for a last-minute adjustment on the boat.
Regulators and hose routing
A twinset regulator configuration needs to protect access to gas after a regulator or valve problem, while keeping hoses tidy and easy to identify. A typical manifolded setup uses two first stages: one on the right post and one on the left post.
The right post commonly supplies the primary second stage on a longer hose, along with the wing inflator. The long hose is routed cleanly from the right first stage, down the diver's right side, under the canister light or waist belt if used, across the chest and around the neck to the primary second stage. The exact routing should be comfortable and should not snag on clips, D-rings or accessories.
The left post commonly supplies the backup second stage on a shorter hose, worn on a bungee necklace, plus the submersible pressure gauge and drysuit inflator where applicable. Keeping the backup regulator close under the chin makes it easy to find, while a neck bungee prevents it from dangling below the diver.
There are variations. Some divers use a different inflation arrangement, and local training agency standards may specify hose lengths or routing methods. Follow the system taught by your instructor during training. Once qualified, make changes deliberately and test one change at a time in controlled water rather than rebuilding the whole rig before a demanding dive.
Hose length is worth getting right. A long hose that is too short can restrict donation and movement; one that is far too long becomes untidy. Equally, avoid sharp bends at first-stage ports or hoses that rub constantly against cylinder valves. A clean layout makes shutdown drills faster because you can immediately see which hose belongs to which post.
Gauges, computers and accessories
Place the pressure gauge where you can read it without letting it hang below the body. A short high-pressure hose and bolt snap are commonly used so the gauge can be clipped to the left hip D-ring. It should be protected from impact, but not so tightly restrained that it cannot be viewed comfortably.
Your dive computer should support the gas plan you are actually diving. For a basic twinset dive on a single bottom gas, a reliable computer with clear decompression information may be enough. For staged decompression, multi-gas capability and a disciplined approach to gas switching become more relevant. The equipment should support sound planning, not replace it.
Keep accessories purposeful. A cutting tool should be accessible with either hand. A reel, DSMB and backup mask need secure stowage that does not obstruct the long hose or dump valves. If you add a torch, camera or stage cylinder, revisit trim and hose routing rather than assuming the original configuration still works unchanged.
Weighting and trim: where the setup becomes personal
Twin steel cylinders, a steel backplate and a thick wetsuit can create a surprisingly heavy system. Conversely, aluminium cylinders, a lightweight plate and a drysuit may need more ballast. There is no useful universal number for lead weight.
Begin with a proper buoyancy check at the end of a dive or with cylinders at a realistic low pressure. You should be able to hold a stop comfortably with near-empty cylinders and minimal gas in the wing. Carrying too much lead means carrying more gas in the wing, which can make trim and ascent control less stable.
Distribute any required weight to improve balance rather than placing all of it on one belt. Trim pockets on the cylinder bands, a weighted single-tank adaptor where appropriate, or harness-mounted weight systems can help position ballast. The best placement depends on whether your feet float, your head drops, and how your exposure suit behaves at depth.
Take the time to assess horizontal trim in shallow water. A stable, flat position reduces effort, improves finning efficiency and makes valve drills easier. Small adjustments can have a noticeable effect: moving the cylinders slightly, repositioning a kilogram of weight, or changing the height of the backplate can transform how the rig feels.
Pre-dive checks for a twinset
Before each dive, set aside time to inspect the complete system with your buddy. A twinset has more connections and more failure-management options than a single cylinder rig, so familiarity matters. Check the following points methodically:
- Confirm both cylinder valves are fully opened, then back them off only if that is your established local practice.
- Open the isolator and verify that both pressure gauges, if fitted during setup, show the expected pressure.
- Breathe from both second stages while watching for freeflows, leaks or pressure drops.
- Inflate and dump the wing fully, checking the inflator hose connection and dump-valve operation.
- Reach, identify and practise turning each valve without removing the unit or changing position.
When this configuration may not be the right choice
A manifolded twinset is an excellent solution for many technical divers, but it is not the only solution. Independent doubles can suit certain local practices and require different gas-management procedures. Sidemount may be a better option for divers with shoulder-mobility limitations, restrictive access, travelling constraints or a preference for individual cylinder handling.
A smaller twinset can make sense for training, smaller divers or short cold-water dives. Larger cylinders may suit extended bottom times, but the extra weight and drag are real trade-offs. The right configuration is the one you can carry, operate, trim and manage confidently for the whole dive.
At Deep Dive Supplies, we approach twinsets as custom systems rather than a fixed shopping list. Build the foundation carefully, test it in easy conditions, and let your actual diving refine the final setup. A well-fitted twinset should soon stop feeling like a collection of parts and start feeling like dependable equipment you can focus on diving with.
