A regulator is not simply a collection of parts that happens to fit a cylinder valve. When you assemble scuba regulator set components correctly, you create a breathing system that is comfortable to use, easy to monitor and much less likely to snag, pull or distract you underwater. The goal is not just to make every hose fit. It is to build a configuration that suits your BCD, diving environment and emergency procedures.
This guide covers the assembly of a standard open-circuit single-cylinder regulator set. It is not a substitute for manufacturer instructions, professional servicing or a proper functional check by a qualified technician. If a component is damaged, unfamiliar or does not seal as expected, stop and resolve the issue before the dive.
Start with compatible components

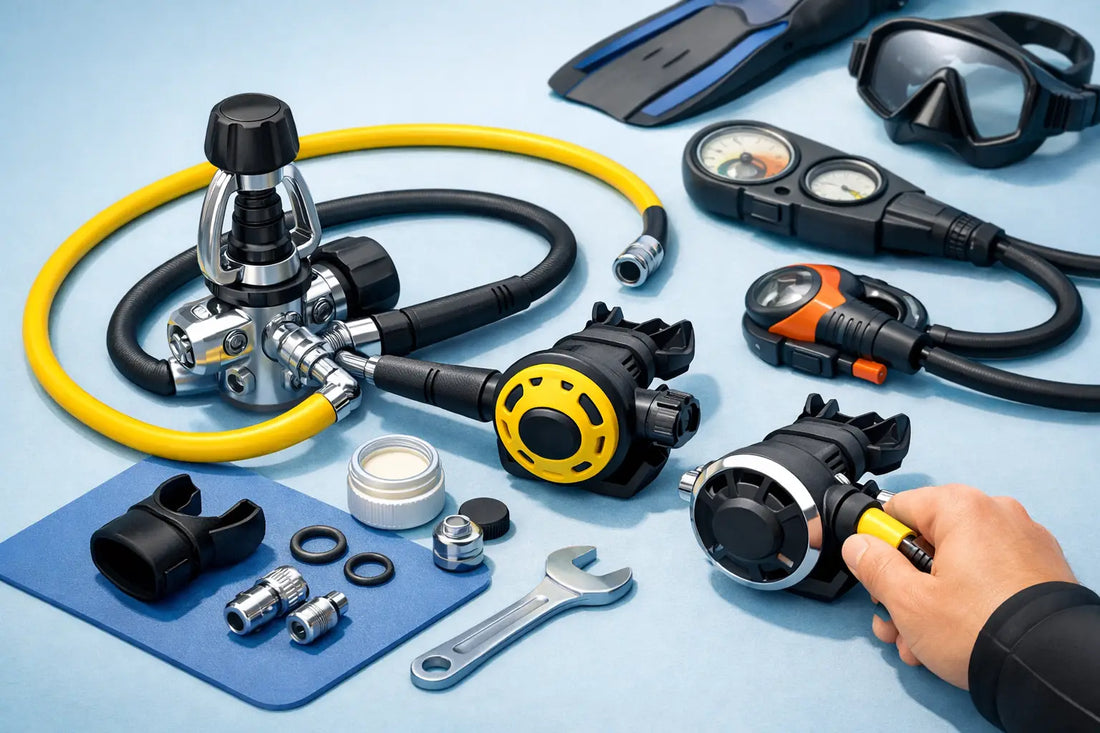

A typical regulator set includes a first stage, primary second stage, alternate air source, low-pressure inflator hose and a pressure gauge or transmitter. The first stage connects to the cylinder valve and reduces cylinder pressure to an intermediate pressure. The second stages then deliver breathable gas on demand.
Before fitting anything, confirm that the first stage matches your cylinder valve. DIN regulators screw into the valve and are common among technical divers because of their secure, compact connection. Yoke or A-clamp regulators fit over a compatible valve and are widely used with recreational hire cylinders. Do not force either system onto an unsuitable valve.
Check that each hose has the correct fitting. Low-pressure ports are used for second stages and BCD inflator hoses. The high-pressure port is reserved for an analogue submersible pressure gauge, a hose-mounted transmitter or a compatible electronic transmitter. A high-pressure hose must never be installed in a low-pressure port, and vice versa.
Inspect the first stage O-ring, whether it is fitted to a DIN regulator or sits in the cylinder valve for a yoke connection. It should be clean, intact and free from deep cuts, flattening or grit. A small damaged O-ring can turn a normal setup into a loud, high-flow leak as soon as the valve is opened.
Assemble your scuba regulator set in a sensible order
Work on a clean, stable surface with the dust cap on the first stage until you are ready to mount it. Keep sand, salt crystals and water away from the inlet. Even when setting up on a dive boat, a few careful minutes protect precision components.
Fit the first stage to the cylinder
Make sure the cylinder valve is fully closed. For a DIN connection, remove the dust cap, align the first stage with the valve and screw the handwheel in smoothly. It should turn easily. Cross-threading is a sign to stop, back off and realign the connection. Tighten by hand only, unless the manufacturer specifically directs otherwise.
For a yoke regulator, check the valve O-ring first. Place the yoke over the valve, seat the first-stage inlet squarely against the O-ring and tighten the yoke screw hand-tight. Over-tightening does not improve the seal and can damage the equipment.
Position the first stage so its ports and hoses naturally follow the route you intend to use. On many back-mounted single-cylinder setups, divers place the primary second-stage hose from the right side of the first stage and the inflator hose to the left. This is a common starting point, not an unbreakable rule. The best orientation depends on the first-stage design, hose lengths, cylinder position and whether you use a backplate-and-wing, jacket BCD or another configuration.
Connect the low-pressure hoses
Attach the primary second stage to an appropriate low-pressure port. The hose should reach your mouth without pulling when you turn your head fully left or right. A hose that is too short can tug on the mouthpiece; one that is excessively long can loop out into the water and create unnecessary snag risk.
Fit the alternate air source to another low-pressure port. For a conventional recreational setup, it is often routed beneath the primary hose and secured where it can be seen and deployed quickly. A bright yellow hose or cover remains familiar for many buddy teams, though colour alone is not a safety system. Placement, hose length and a rehearsed donation procedure matter more.
Connect the BCD inflator hose to a low-pressure port that gives it a direct, relaxed route to the inflator. Avoid tight bends at the first stage or a hose route that crosses sharply over the cylinder valve. Push the quick-disconnect fitting onto the inflator nipple until it clicks, then pull it gently to confirm it is locked in place.
Use only hoses specified for your regulator and intended pressure range. Do not attempt to solve a routing problem with improvised adapters or poorly matched hose fittings.
Add the pressure gauge or transmitter
An analogue SPG connects to the dedicated high-pressure port through an HP hose. Tighten the hose fitting to the manufacturer’s torque specification, ideally with the correct spanner rather than an adjustable tool that can mark the fitting. The gauge should be routed where you can read it without hunting for it, commonly down the left side and secured close to the waist area.
A wireless transmitter screws directly into an HP port or may be used with a short HP spool, depending on its design and manufacturer guidance. A short spool can improve clearance and reduce leverage on the transmitter, particularly when the first-stage ports sit close to the cylinder valve. It also gives you more freedom to orient the transmitter for a reliable computer signal.
Do not use thread tape on standard regulator hose fittings unless the manufacturer specifically requires it. The sealing surfaces and O-rings are designed to do the work. Thread tape in the wrong place can cause contamination or prevent a proper connection.
Route hoses for access, not appearances
A tidy regulator set is useful because it keeps critical equipment where you expect it to be. It should also remain comfortable when you look up, down and behind you, inflate the BCD or reach a cylinder valve.
For many single-cylinder divers, the primary hose comes over the right shoulder, the alternate air source is retained in the chest area, and the SPG runs down the left side. This layout supports a familiar pre-dive routine and keeps the gauge clear of the inflator assembly. However, a long-hose primary donation setup changes the arrangement. In that case, the primary may route from the right side around the body, while a shorter necklace-mounted second stage sits beneath the chin as the backup.
Neither approach is automatically better. A standard octopus configuration can be straightforward for recreational diving and buddy teams using the same procedure. A long-hose setup can be highly effective in overhead, technical or disciplined team-diving environments, but only when the diver has been trained to deploy and manage it. Buy and configure for the dives you actually make, not for an imagined future profile.
At Deep Dive Supplies, custom length hoses are particularly useful depending first-stage port layout, hose length and BCD style can be matched before you end up fighting your equipment at the surface.
Pressurise slowly and check every function
With the regulator fitted and hoses connected, point the second stages away from yourself and others. Open the cylinder valve slowly. A gradual opening is kinder to the system and makes it easier to identify a leak. Once pressurised, open the valve fully, then turn it back a fraction only if that is consistent with your normal practice and the valve manufacturer’s guidance.
Listen carefully around the first-stage connection, hose fittings and inflator quick disconnect. A brief sound as pressure enters the system is normal. Persistent hissing is not. Check the SPG reading or confirm that your dive computer receives the transmitter signal, then compare the displayed pressure with the known cylinder fill.
Breathe from the primary second stage several times. It should deliver gas easily and stop flowing when you stop inhaling. Test the purge button briefly, then repeat the process with the alternate air source. A short purge is enough - prolonged purging wastes gas and can cause a second stage to free-flow if it is badly positioned.
Connect and test the BCD inflator. Inflate briefly, check for airflow stopping when the button is released, then use the deflate function. If the inflator sticks, leaks or behaves inconsistently, do not assume it will improve in the water.
Make the final checks part of your routine
Before entering the water, confirm the cylinder valve is open, the regulator breathes normally and your gauge or transmitter is readable. Check that the primary is accessible, the alternate is secured but easy to deploy, and the SPG is clipped where you can see it without extending your arm.
Then perform a proper buddy check. Your partner should know where your alternate air source is, how your configuration works and what to expect if you donate gas. This matters even more when using a customised setup, a long hose or equipment that differs from a standard training layout.
A well-assembled regulator set should disappear from your attention once the dive begins. If a hose pulls, a gauge vanishes behind your hip or your alternate cannot be found with one hand, treat that feedback as useful information. Adjust the setup on land, test it again, and let your next configuration serve the way you actually dive.
